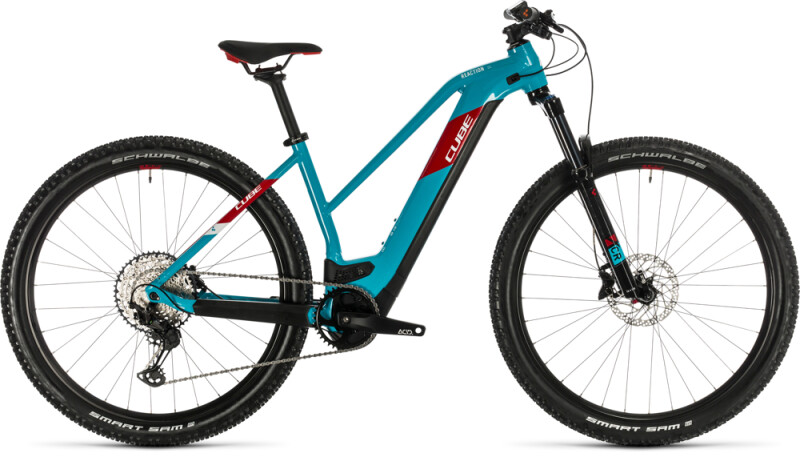

E-Bike
| Modelljahr | 2020 |
|---|---|
| Motor | Bosch Drive Unit Performance CX Generation 4 (75Nm) Cruise (250Watt) |
| Akku | Bosch PowerTube 625 |
| Display | Bosch Purion |
| Material | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points |
| Gabel | SR Suntour XCR34 LO-R Air, Tapered, 15x110mm, 120mm, Lockout |
| Bremse | Shimano BR-MT420/MT400, Hydr. Disc Brake (203/180) |
| Schaltung | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Schalthebel | Shimano SLX SL-M7100 |
| Farben: | petrol´n´red |
| Felgen: | CUBE EX30, 32H, Disc, Tubeless Ready |
|---|---|
| Reifen: | Schwalbe Smart Sam, Active, 2.60 |
| Sattel: | Natural Fit Sequence |
| Sattelstütze: | CUBE Performance Post, 30.9mm |
| Lenker: | CUBE Rise Trail Bar, 700mm |
| Vorbau: | CUBE Performance Stem, 31.8mm |
| Griffe: | CUBE Race Grip 31mm, 1-Clamp |
| Steuersatz: | FSA Orbit Z 1.5B ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| Pedale: | CUBE PP MTB |
| Kurbelsatz: | ACID E-Crank, 38T, 175mm |
| Zahnkränze: | Shimano SLX CS-M7100, 10-51T |
| Kette: | Shimano SLX CN-M7100 |
| Gewicht: | 23,1 kg |
| Rahmengrössen: | Trapeze 15", Trapeze 17", Trapeze 19" |
